Specifications

72/96/120 Watt Selectable & Color Selectable Adjustable Wall Pack

Model No. WPA120WSCCTBK5
Order Code: 11628

Quick Specs

Watts Selectable: Selectable: 72, 96, 120
Voltage: 120-347V
Operating Temp. Range: -40°C (-40°F) to 57°C (135°F)
Color Temperature: Selectable 3000K, 4000K, 5000K
Lumens: 9360, 12480, 15600
Dimming: 0-10V
Power Factor: ≥ 0.9
Rated Life: 50,000 hours

Agency Approvals

UL Listed, DLC Premium, IP65 Rated

Product Details

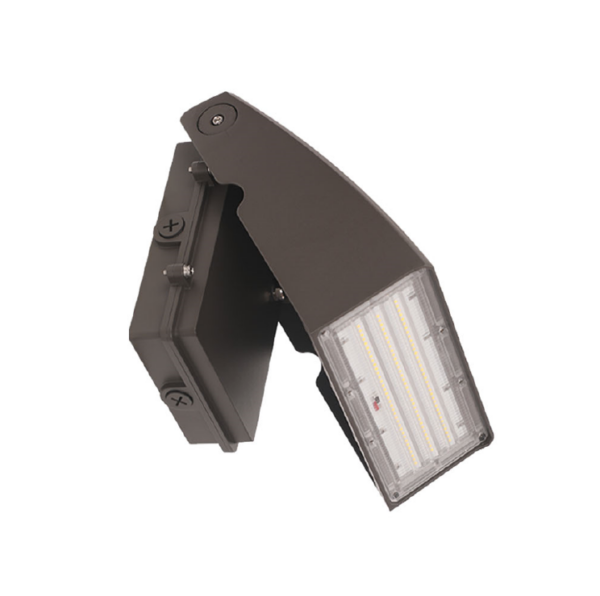

The EarthTronics LED Adjustable Wall Packs has a slim profile design. They can be locked into any angle ranging from 0° to 90° providing exterior security illumination where required. The durable die cast aluminum housing is powder coated to maintain the fixture appearance for several years. Select from 3000K, 4000K or 5000K color temperatures as well as several different lumen levels, this is easily done by the dial switch located on the product. It features a high 80+ CRI providing an excellent light source for nearly any task. The polycarbonate lens provides durability and resistance impact, and the conduit entry points allow direct wall or junction box mounting. These adjustable wall pack fixtures feature 120-347V universal voltage. This fixture can withstand the elements, it’s made to last in the outdoors with the IP65 rating and a minimum start temperature of -40°F. They are equipped with a 0 – 10 volt continuous dimming driver with a dimming range capability of 10% to 100%. The long 50,000-hour life is backup with a 10 year limited warranty. The wall pack fixture requires a properly anchored UL recognized junction box for proper installation.  Night sky complaint. Photocell built-in.

Order Code 11628 | Model WPA120WSCCTBK5VIEW   DOWNLOAD   EMAIL

Product IES File
