Highbay
Specifications

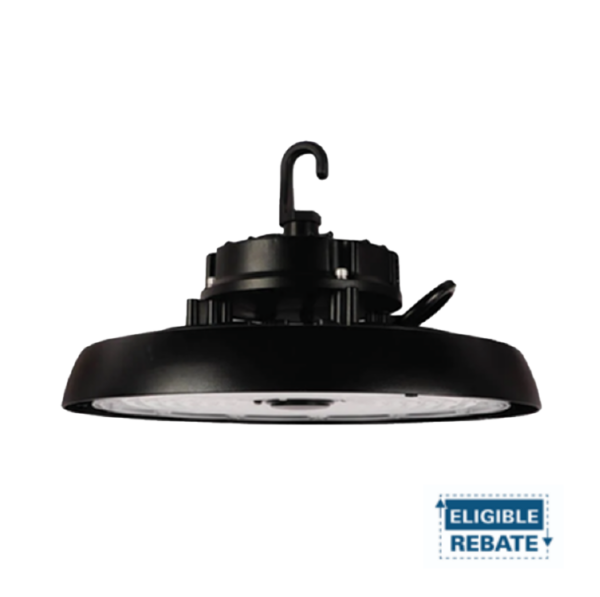

150/200/240 Watt Selectable & Color Selectable UFO Highbay
Model No. Model No. HBU240WSCCTB1S
Order Code: Order Code: 11888
HIGH BAY UFO 150/200/240W 2-CCT 120-277V
Quick Specs
Watts Selectable: Selectable: 150, 200 or 240
Voltage: 120-277V
Operating Temp. Range: -40°C (-4°F) to 55°C (122°F)
Color Temperature: Selectable 4000K or 5000K
Lumens: 24000, 32000 or 38400
Dimming: 0-10V
Power Factor: ≥ 0.9
Rated Life: 50,000 hours-
Agency Approvals
UL listed, IP65 rated, ETL Sanitation
Product Details
EarthTronics LED Highbay delivers excellent energy savings then replacing up to a 1000 watt HID fixtures. This UFO high bay fixture has a 12.8”diameter design and produces up to 38400 lumens. It features color selection options of 4000K or 5000K with a high 80+ CRI providing excellent visual acuity for accuracy when working in manufacturing and warehousing applications. This fixture has a unique open center ventilated LED array afford excellent heat dissipation providing high lumen maintenance over its service life. This UFO Highbay is IP65 rated for wet locations and the housing is corrosion resistant die-cast aluminum. This fixture is also ETL Sanitation Listed (conforms to NSF STD.2) for use in food processing and other clean room applications. 0-10V dimming standard and compatible with several controls. Control options include EarthConnect Network lighting control and a full functioning microwave sensor. High quality LED chips provide for excellent lumen maintenance. This UFO High Bay ships with a standard 6′ 18/3 SJT whip, 0-10v dimming wires and mounting hooks. DLC® Premium listed.
