Products » EarthConnect » Lighting Controls » Hardwire Low Bay Controller

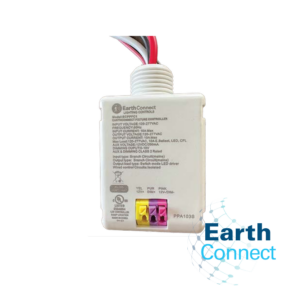

Hardwire Low Bay Controller

  • Single Channel, Sensor ready
  • High efficiency, switching power supply and a 10a relay
  • This controller is not Bluetooth®
  • For use with EarthConnect Bluetooth® integrated fixture with microwave sensor 11803 ECMVLVE Spec Sheet
  • Factory installed with order
  • AC 120/277V, 60Hz
  • Indoor use only, ideal for small to medium size systems
  • 0-10V dimming
  • Bluetooth® enabled microwave sensor is available (see optional accessories)
  • Controlled via EarthConnect mobile app, keypad or sensors (purchased separately)
  • For use with EarthTronics LED Low Bay products, Vapor & Area Light
SKU: EarthConnect, 11800, ECPPFC1, PPA103, 11803, ECMVLVE Categories: EarthConnect, Lighting Controls
  • Description
  • Specification Downloads

Description

This fixture controller utilizes intelligent relay control software that reduces wear to extend relay life. When a sensor is installed (sensor sold separately), it will automatically read light levels and determine how to best illuminate your space. It’s simple and intuitive. Using the EarthConnect app, nodes can be commissioned without the need for a gateway or internet access. Factory installed with order of EarthTronics LED Low Bay products. For use with EarthConnect Bluetooth® integrated fixture with microwave sensor.

  • 11800 Hardwire Low Bay Controller Spec Sheet - LED Low Bays, Vapor & Area Lights
  • 11800 ECPPFC1 Installation Instructions
  • 11803 ECMVLVE - Microwave Sensor - Spec Sheet
  • 11808 Wall Switch Spec Sheet
  • Wall Switch - 5 Key Installation Instructions
  • EarthConnect App Instructions
