Specifications

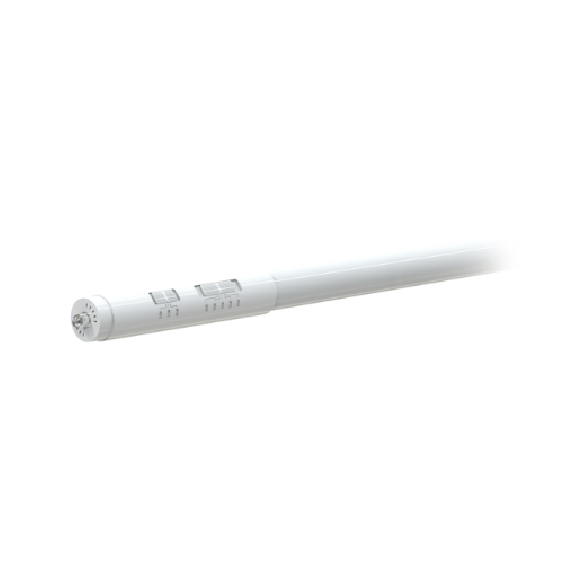

Type B 96 inch, Watt and Color Selectable, Double End Interchangeable Base (FA8 or R17D)

Model No. LT8WS8CCTDES
Order Code: 11862

Quick Specs

Watts Selectable: Selectable: 24, 32, or 40
Voltage: 120-277V
Operating Temp. Range: -4°F (-20°C) to 113°F (45°C)
Color Temperature: Selectable 3000K, 3500K, 4000K, 5000K or 6500K
Lumens: 3500, 4400, or 5500
Dimming: 0-10V
Power Factor: ≥ 0.9
Rated Life: 50,000 hours

Agency Approvals

UL1993 & UL1598C FCC, RoHS, DLC®, NSF

Product Details

EarthTronics interchangeable base T8 LED lamp is a direct replacement for T8 and T12 linear tubes. This lamp is setup for double-end direct wire method. This Type B lamp can be directly wired quickly, and no lamp holder modifications are necessary. This lamp is color selectable, offering 5 choices 3000K, 3500K, 4000K, 5000K or 6500K which can be adjusted in the field by just sliding the switch to your desired color. The flexible design offers interchangeable base type of FA8 or R17D as well as lumen options 3500, 4400, or 5500. It provides exceptional LED lighting with reduced energy and maintenance costs. This lamp also works with shunted and non-shunted sockets, dry or damp locations and enclosed fixtures. The beam angle provides a wide distribution pattern and is perfect for directing more light to the working surface from existing troffer fixtures and strip fixtures as well as task and display lighting applications. Shatterproof coated to conform to the Food Safety standards. This lamp is engineered for high lumen maintenance over its 50,000 hour rated. 120/277V operation. DLC Listed.

Order Code 11862 | Model LT8WS8CCTDESVIEW   DOWNLOAD   EMAIL
