LED Lamps » T8 & T5 LED Replacement Bulbs » T8 96" » 5500 Lumen 43 Watt Type B 96 inch Double End Direct Wire R17d

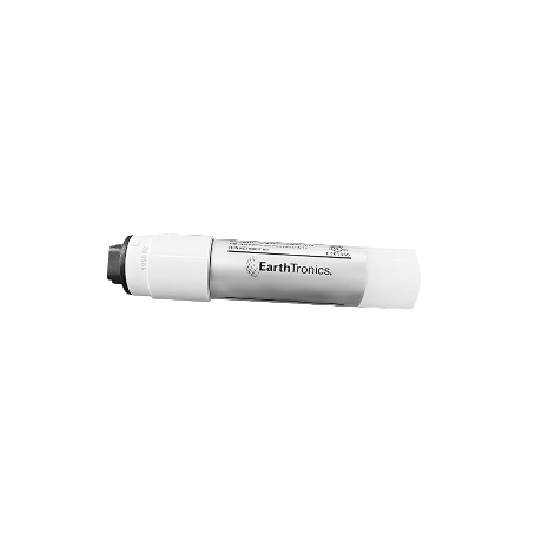

5500 Lumen 43 Watt Type B 96 inch Double End Direct Wire R17d

$16.99 – $17.99

  • Provides 5500 lumens
  • 5000K available with a high 80+ CRI
  • Easily retrofit 96 inch fixtures
SKU: 11134, LT843850BDEHO, 11550, LT840850BDEH0 Categories: LED Lamps, T8 & T5 LED Replacement Bulbs, T8 96"
  • Description
  • Specification Downloads

Description

Easily replace high output HO T12 and T8 96” fluorescent lamps and save up to 65%* in energy costs. The EarthTronics 96” TLED provides 5500 lumens and consumes only 43 watts. The lamp CCT is 5000K and provides 82CRI for improved visual acuity and color clarity when compared to the fluorescent lamps being replaced. The construction is glass and the light distribution is 300° which makes the lamp an easy answer when retrofitting simple strip fixtures or more decorative pendant fixtures. This Type B direct wire lamp is easily installed with simple rewiring directly to 120VAC or 277VAC power supply. Follow the instructions provided to wire the load (black wire) to one end of the lamp and the neutral (white wire) to the other end. There is no need to replace lamp holder sockets. The EarthTronics 96” TLED is a perfect for use in schools, institutions, warehouses, manufacturing, retail and other commercial applications where energy savings is required. 50,000 hour rated life. R17d lamp base type. Operates on 120 – 277VAC.
*when replacing a 110 watt HO T12 fluorescent



  • 11134 LT843850BDEHO Spec Sheet - R17D (HO Pin)
  • 11550 LT840850BDEHO Spec Sheet - R17D (HO Pin) (40 watt, 5500 Lumen)
  • TLED Sell Sheet - ETTL105
