Highbay
Specifications

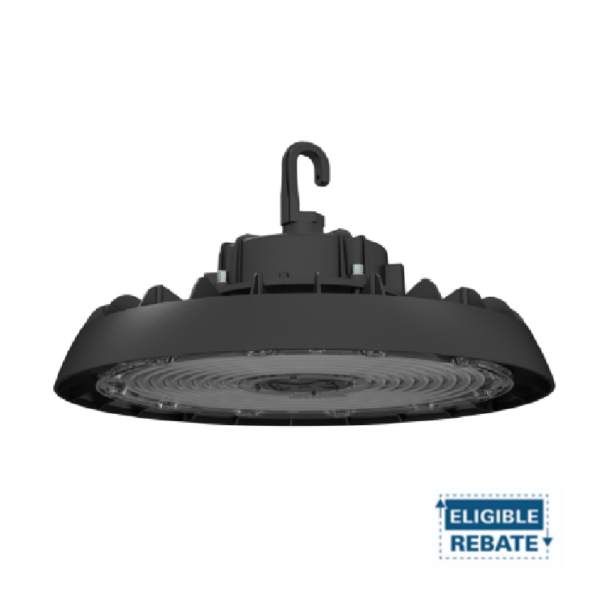

50/80/100/150 Watt Selectable & Color Selectable UFO Highbay
Model No. HBU150WSCCTB1
Order Code: 11776
Quick Specs
Watts Selectable: Selectable: 50, 80, 100 or 150
Voltage: 120-277V
Operating Temp. Range: -40°C (-4°F) to 55°C (122°F)
Color Temperature: Selectable 3000K, 4000K or 5000K
Lumens: 6750, 10800, 13500 or 20250
Dimming: 0-10V
Power Factor: ≥ 0.9
Rated Life: 50,000 hours
Agency Approvals
UL listed, IP65 rated, DLC® Premium
Product Details
EarthTronics LED Highbay delivers excellent energy savings then replacing up to a 1000 watt HID fixtures. This wattage selectable fixture has an 11.30” diameter design and produces up to 20250 lumens. The CCT (color) selectable feature and a high 80+ CRI rating provides excellent visual acuity for accuracy when working in various manufacturing and warehousing applications. The LED driver is equipped with 12VDC to power optional sensors or EarthConnect Bluetooth mesh systems. Sensor options are easily installed by simply screwing them into the face of the fixture. This die-cast fixture has a unique open center ventilated LED design which affords excellent heat dissipation providing high lumen maintenance over its service life. IP65 rated for wet locations. Driver is 120/277VAC with 0-10V dimming standard and compatible with several controls. High quality LED chips provide excellent lumen maintenance. This UFO High Bay ships with a standard 6’ 18/3 SJT whip, 0-10v dimming wires and mounting hooks.
