Indoor LEDs
Specifications

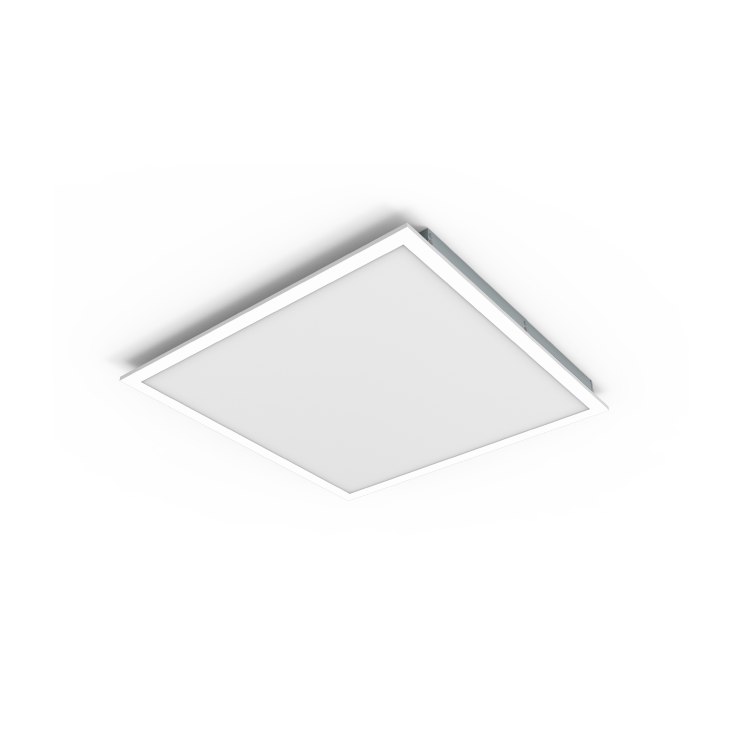

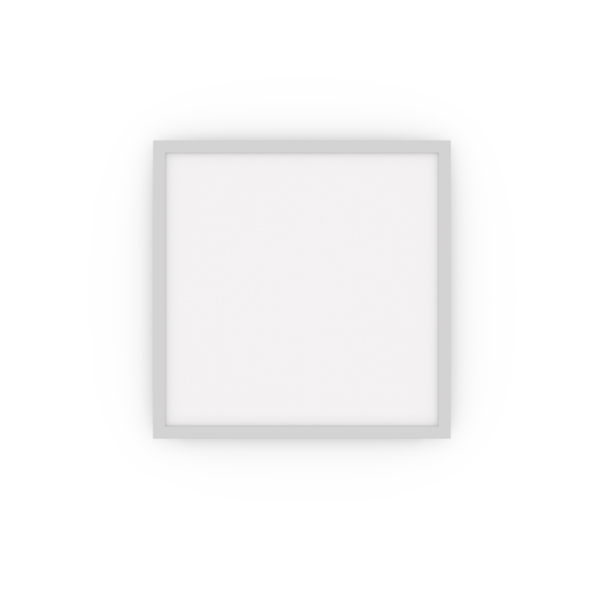

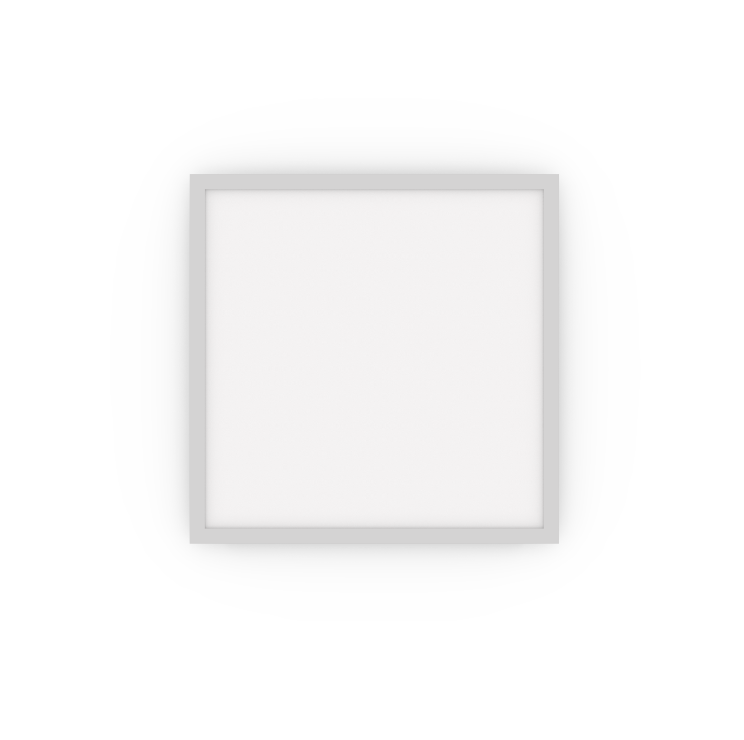

20/30/35 Watt Selectable & Color Selectable 2×2 Back Light Panel
Model No. LDFP2X2WSCCTD1
Order Code: 11496
Quick Specs
Watts Selectable: 20, 30, 35
Voltage: 120-277V
Operating Temp. Range: -40°C (-40°F) - 40°C (104°F)
Color Temperature: 3500K, 4000K, 5000K
Lumens: 2200, 3300, 4000
Dimming: 0-10V
Power Factor: ≥ 0.9
Rated Life: 50,000 hours
Agency Approvals
DLC Listed, IC Rated, UL Listed
Product Details
This 2×2 LED back light design provides the flexibility to insure the correct light level and color temperature desired in different applications. Select from 3500K, 4000K or 5000K color temperatures as well as 2200, 3300 or 4000 lumen levels with a switch located on the driver housing. The lightweight housing and slim design, measures only 1.5 inches in depth. The integral j-box and driver housing provide ample access for easy installation. The fixture is constructed using stamped steel back plate that provides excellent LED cooling as well as contributing rigidity to the design. The interior of the fixture is highly reflective white powder coated. The direct illumination panel is ideal for use in offices, schools, healthcare facilities and other commercial applications. This 2×2 panel features 120-277V voltage operation with an electronic driver that works with 0 – 10 volt dimming systems. DLC® listed.
