Products » Indoor LEDs » Panel Lights » Back Light Panels - 1x4 » 1×4 LED Back Light Panel

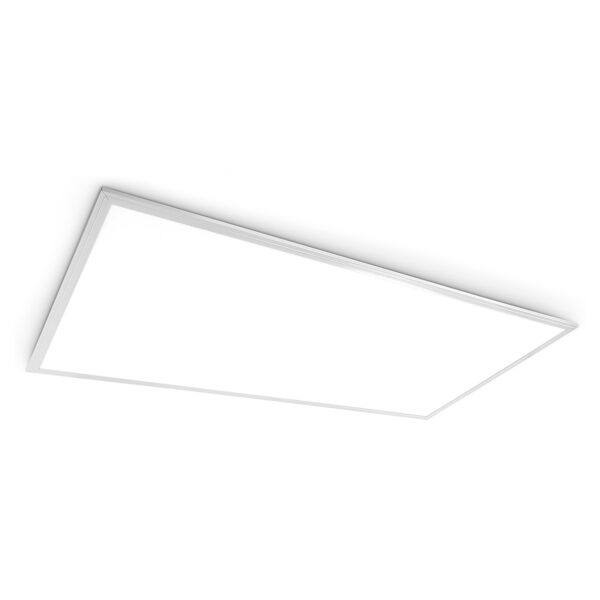

1×4 LED Back Light Panel

$0.50 – $1.00

  • Select from 3500K, 4000K and 5000K at installation with a simple switch located on the driver
  • Direct illumination provides true color over the life of the product
  • Integral LED lens is constructed from PMMA and provides even illumination across the face of the panel
  • Stamped steel LED housing is part of a rigid fixture design
  • Fixture interior painted white for over 96% reflectivity
  • Contractor friendly junction box for easy installation
  • 100-347VAC driver with 0-10V dimming is standard
  • Aluminum frame fits properly in drop ceiling panels
  • 50,000 hour rated life
  • Available in Canada
SKU: 11497, 11257, LDFP1X442CSD5, 11413, 11254, LDFP1X44440D5, LDFP1X44240D5, LDFP1X4WSCCTD1 Categories: Back Light Panels - 1x4, Indoor LEDs, LED Fixtures, Panel Lights Tags: 120-347V, 11254, 11257, 11413, 1x4
  • Description
  • Specification Downloads
  • Lighting Layout

Description

This 1×4 LED back-light design features three color selectable operation. Switch between 3500K, 4000K and 5000K easily at the time installation. This 1×4 panel provides high energy-efficient direct illumination and delivers 4200 lumens using only 40 watts to replace troffer and panel fixtures ceiling applications. The lightweight housing and slim design, measures only 1.5 inches in depth. The integral j-box and driver housing provide ample access for easy installation. The fixture is constructed using stamped steel back plate that provides excellent LED cooling as well as contributing rigidity to the design. The interior of the fixture is highly reflective white powder coated. The direct illumination panel is ideal for use in offices, schools, healthcare facilities and other commercial applications. DLC® rated product.





  • 11497 LDFP1X4WSCCTD1 Spec Sheet - Color & Wattage Selectable
  • IES File
  • 11257 LDFP1X442CSD5 Spec Sheet - 40 watt, Color Selectable
  • Prior Generation: 11413 LDFP1X44440D5 Spec Sheet - 40 Watt, 4000K, 120/347V

Lighting Layout

Take your first step toward finding the best lighting solution for your application. Fill out our Lighting Layout form below. This tool provides a numeric and rendered solution for lighting applications. Once completed we will reach out to you for further information.

Name(Required)

Room Size

Light Levels

File Upload

If you have documents you may attach here.
Max. file size: 50 MB.

Related products

  • 9″ Square Architectural LED Panel Light

    $0.50 – $1.00
  • 2×4 LED Back Light Panel

    $34.00
  • 9″ Round Architectural LED Panel Light

    $0.50 – $1.00
  • 2×2 LED Back Light Panel

    $34.00
